From West Room 5, 1st Floor, Building 18, Huilong Yangguang Mingyuan, New District, Xinxiang, Henan, China (Mainland). ■ Specifications

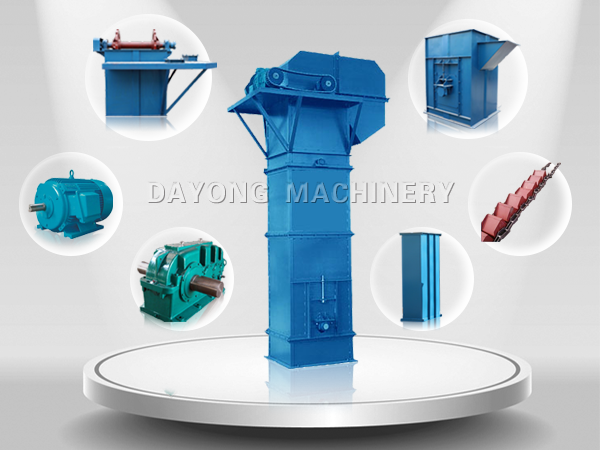

Bucket elevator conveying dry product or solid product from low to high, supply automatic continuous conveying operation.
At the top of the conveyor, the bucket rotates over and dumps the product out. The bucket then travels down the back side of the frame to be filled again. A bucket elevator has two chains which carry the buckets. The buckets are closely spaced together allowing for a nearly continuous flow of product.
At the top of the conveyor, the bucket rotates over and dumps the product out. The bucket then travels down the back side of the frame to be filled again. A bucket elevator has two chains which carry the buckets. The buckets are closely spaced together allowing for a nearly continuous flow of product.
Adjusting transfer speeds could up and down conveying capacity. Lifting height is selected as your Location design request.
Bucket elevator conveyor is designed for vertical transport powder, granular materials and small block and small materials such as grinding: coal, cement, stone, sand, clay, ore or dry mortar and other industries, for construction, chemical and food stuff.
Widely applied in vast industries like metallurgy, chemical industry,building materials, mine, grain and vegetable oil, food, fodder, plastic and medicine.
■ Technical Data
| Model | Capacity (m3/h) | Bucket capacity (L) | Buckets pitch (mm) | Speed (m/s) | Size of material (mm) |
| NE15 | 15 | 2.5 | 203.2 | 0.5 | 50 |
| NE30 | 30 | 7.8 | 304.8 | 0.5 | 65 |
| NE50 | 50 | 15.7 | 304.8 | 0.5 | 65 |
| NE100 | 110 | 35.0 | 400 | 0.5 | 95 |
| NE150 | 170 | 52.2 | 400 | 0.5 | 95 |
| NE200 | 220 | 84.6 | 500 | 0.5 | 125 |
| NE300 | 320 | 127.5 | 500 | 0.5 | 125 |
| NE400 | 400 | 182.6 | 600 | 0.5 | 145 |
| NE500 | 500 | 260.9 | 700 | 0.5 | 165 |
| NE600 | 600 | 330.2 | 700 | 0.5 | 165 |
| NE800 | 800 | 501.8 | 800 | 0.5 | 195 |
