From West Room 5, 1st Floor, Building 18, Huilong Yangguang Mingyuan, New District, Xinxiang, Henan, China (Mainland). ■ Specifications
■ Technical Data
| Model | LS108 | LS114 | LS133 | LS159 | LS219 | LS273 | LS325 | LS426 | ||
| Diameter of screw(mm） | 108 | 114 | 133 | 159 | 219 | 273 | 325 | 426 | ||
| Speed of main shaft(r/min) | 190 | 190 | 190 | 112 | 100 | 90 | 80 | 71 | ||
| Screw picth(mm) | 108 | 133 | 159 | 194 | 219 | 273 | 325 | 402 | ||
| Max capacity (t/h) | 1 | 2 | 4 | 8 | 15 | 20 | 30 | 50 | ||
| Max conveying length(m) | 8 | 10 | 12 | 15 | 18 | 25 | 25 | 25 | ||
| Working angle(degree) | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | ||
| Motor | Model | Length≤7M | Y90S-4 | Y100L1-4 | Y100L2-4 | Y132S-4 | Y132M-4 | Y160M-4 | Y160L-4 | Y180M-4 |
| Power(kw) | 1.1 | 2.2 | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | ||
| Model | Length≥7M | Y100L1-4 | Y100L2-4 | Y112M-4 | Y132M-4 | Y160M-4 | Y160L-4 | Y180L-4 | Y180L-4 | |
| Power(kw) | 2.2 | 3 | 4 | 7.5 | 11 | 15 | 22 | 22 | ||

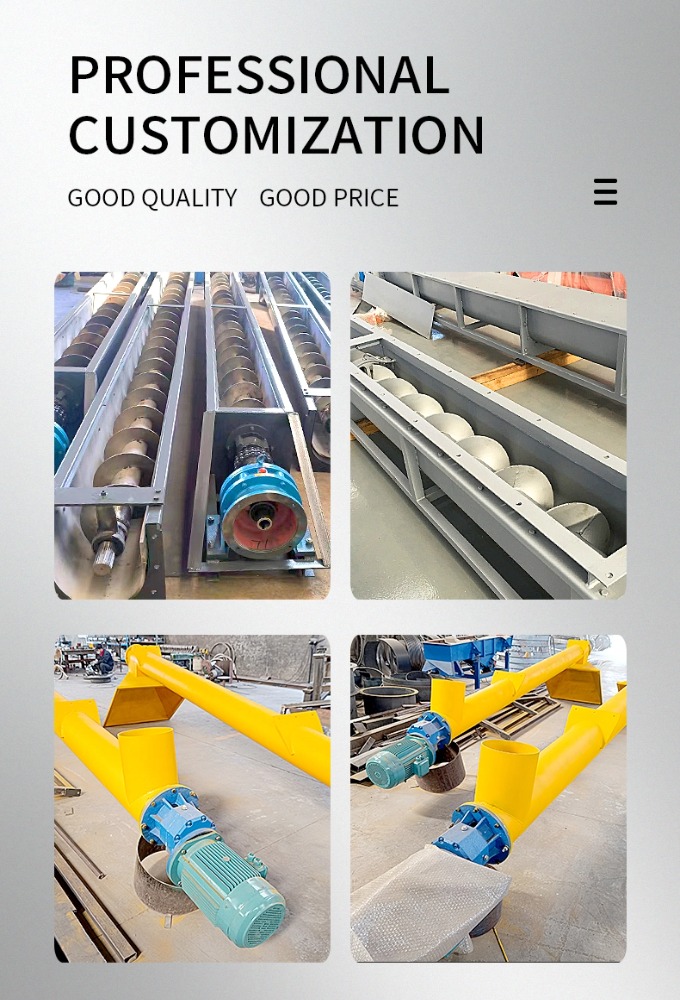

LS screw conveyor is suitable for horizontal and inclined conveying angles, and can complete long-distance conveying. It has high conveying efficiency and strong adaptability. It can be used with a variety of equipment, such as crushers, vibrating screens and various dust removal equipment, etc., to meet the conveying output requirements of large production lines.
1. High material hardness and high strength
2. Good rigidity of the shell and low failure rate: The shell of the LS screw conveyor is made of seamless steel pipe, and the ends are connected to each other with flanges. It has good rigidity and low machine failure rate.
3. Large load-bearing capacity, safe and reliable: One of the main features of the LS screw conveyor is its large load-bearing capacity, safety and reliability, and its ability to withstand large loads to ensure the stability of material transportation.
Welcome to contact us! We will customize the machine for you according to your needs!
