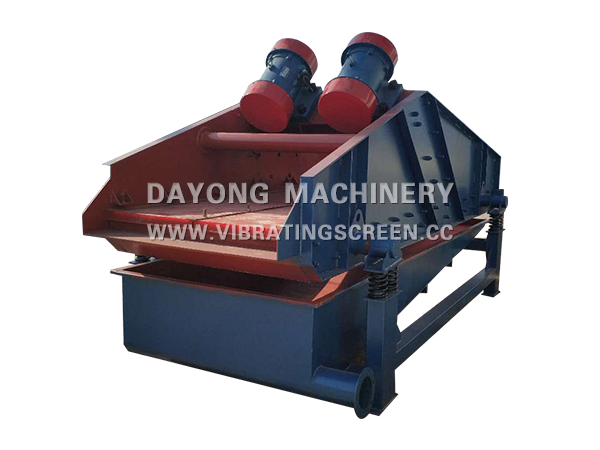

Dewatering Screen

Model: TS1020
Material: Carbon steel Q235
Motor: 2 x 0.75kw
Usage: Slurry dewatering etc.
Mesh size: 200 mesh
Warranty: 18 months

Product Categories

Filling equipment

Powder filling machine

Need help?

(Live chat)

or Emai us: sale@vibratingscreen.cc

Hot Product

Contacts

+86-15136770681

sale@vibratingscreen.cc

+86-373-3669006

From West Room 5, 1st Floor, Building 18, Huilong Yangguang Mingyuan, New District, Xinxiang, Henan, China (Mainland).

Video
Specifications
Technical Data
Inquiry

■ Video

■ Specifications

The dewatering screen has two types of vibration motor type and ordinary motor driving exciter type. Mainly used for dewatering, desliming, degritting, rinsing, scrubbing and washing. It is made up of screen cloth, vibration exciter, supporting system and motor.

Features of dewatering screen

1. Whole machine horizontal installation, but the screen with negative angle installed to ensure the best dehydration effect;

2. The use of high wear-resistant sieve plate with long service life, easy to replace, cost savings, mesh size can be selected according to requirements.

3. Feeding input can be designed to curved sieve surface, improve dewatering efficiency;

4. Set the feed box to ensure that the material evenly into the sieve surface;

5. Low noise and light weight

6. Relatively small volume, large capacity per unit area;

7. Professional design of the frequency, amplitude, low power consumption, suitable for a variety of dehydration needs, 24 hours continuous dry operation;

8. The combination of steel components riveting and welded together, constitute no internal stress, high strength, light and durable frame body.

Applicable industry
Tailings dry discharge: iron tailings, gold tailings, copper tailings, vanadium tailings, lead - zinc tailings, graphite tailings; Washed sand: quartz sand, zircon sand, glass sand, building sand, casting sand, building materials sand, potassium feldspar dehydration; Slime dewatering: slime dewatering; Soil remediation: soil remediation; Sewage treatment: urban sewage, industrial sewage, river sludge solid-liquid separation, sewage treatment plant filtration.

■ Technical Data

Model	Screenarea㎡	Aperture/mm	Screen structure	double-amplitude	Power (kw)	Capacity (m3/h)	Feed size	Vibration angle
TS1020	2	0.25-50	Steel sieve Polyurethane sieve	8-10	0.75×2	5-10	≤10mm	45°
TS1236	4.3			8-12	1.1×2	10-20	≤10mm
TS1536	5.4			8-12	1.5×2	20-30	≤10mm
TS1838	6.5			8-12	3×2	50-80	≤10mm
TS2045	9			8-12	5.5×2	100-120	≤10mm
TS3060	18			8-12	11×2	150-200	≤10mm
